The ESP 01 ESP8266 Serial WIFI Wireless Transceiver Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.



Specification:-

  • 1MB Flash Memory
  • 802.11 b/g/n Standards
  • Wi-Fi Direct (P2P), soft-AP
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW
  • Integrated low power 32-bit CPU could be used as an application processor



Features :

  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • It features an integrated TR switch, balun, LNA, power amplifier and matching network
  • Equips integrated PLL, regulators, DCXO and power management units
  • Integrated low power 32-bit CPU could be used as an application processor
  • SDIO 1.1 / 2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

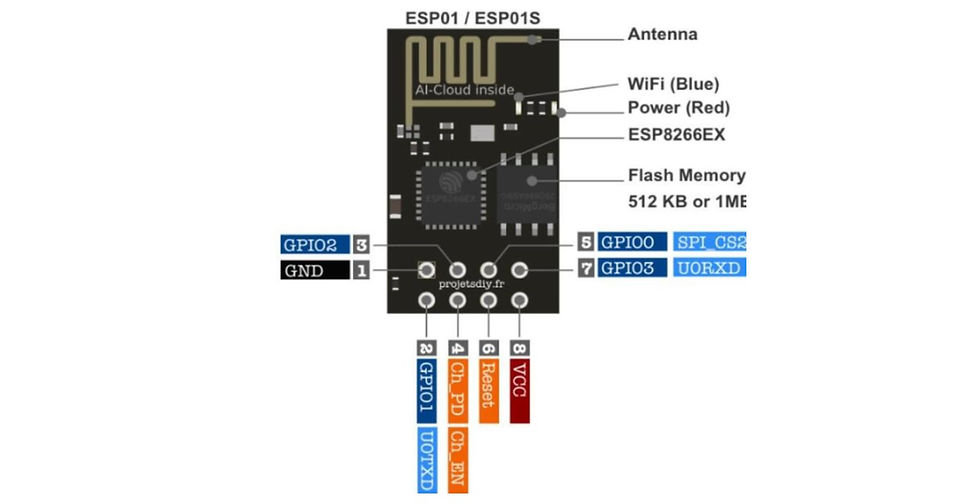

ESP-01 ESP8266 Serial WIFI Wireless Transceiver Module ESP01

SKU: ESP01
₹112.50Price
